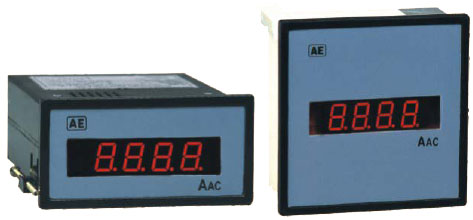

Digital Panel 16 Range Ammeters

Digital Panel Ammeter with presentable range, operators on dual scope integration principals. AC Ammeter is operated by C.T. secondary current 1 Amp & DC Ammeter is operated by voltage drop (50 / 60 / 75mV) across the shunt. A DIP switch (Dual Inline Switch) embedded with 4 switches is provided at the back to select required range of indication for AC current.

The DIP switch can provide 16 different combinations thus providing 16 different ranges of selection in 16 equal steps.

Features

Low Cost
Seven segment Red / Green color LED display with 0.5” size
Isolation for AC signal
AC / DC Signal Measurement
Choice of selection from 16 CT Ratios
Range selector “DIP” switch easily accessible
High accuracy for all 16 ranges
